| Construction | ||
|---|---|---|
| Conductor | Material Size |
Tin Plated Copper 0.035mm(thick)*0.65mm(wide) 0.05mm(thick)*0.65mm(wide) 0.1mm(thick)*0.65mm(wide) |
| Insulation (PET) | Material Color |
PET White |
| Supporting Tape | Material Color |
PET Blue |
| UL & CSA Rating |
|---|
| UL Style: 2896 |
| Temperature: 80°C |
| Voltage: 30V |
| Flame Test: VW-1 |
| Flame Test: FT1 FT2 |
| UL & CSA Rating |
|---|
| UL Style: 20624 |
| Temperature: 80°C |
| Voltage: 60V |
| Flame Test: VW-1 |
| Flame Test: FT1 FT2 |
| UL & CSA Rating |
|---|
| UL Style: 20706 |
| Temperature: 105°C |
| Voltage: 60V |
| Flame Test: VW-1 |
| Flame Test: FT1 FT2 |

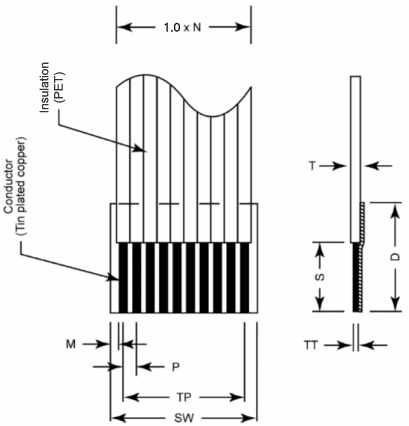

| Item | ID | Spec |
|---|---|---|
| Number of Conductors | N | 2-40 |
| Pitch | P | 1.0 |
| Total Pitch | TP | 1.0*(N-1) |
| Supporting Tape Width | SW | 1.0*(N+1) |
| Margin Width | M | 0.675 |
| Thickness | T | C1 = 0.121, C2 = 0.136, C3 = 0.155, 0.17 or 0.22 |
| Strip Length | S | 1.5~10 |
| Terminal Thickness | TT | 0.3, 0.32, 0.33 or 0.38 |
| Supporting Tape Length | D | 3~20 |
